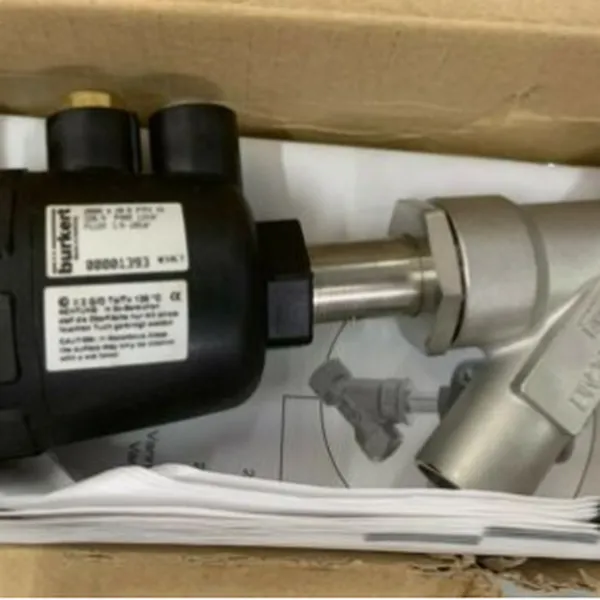

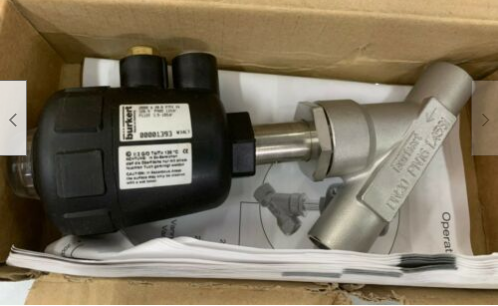

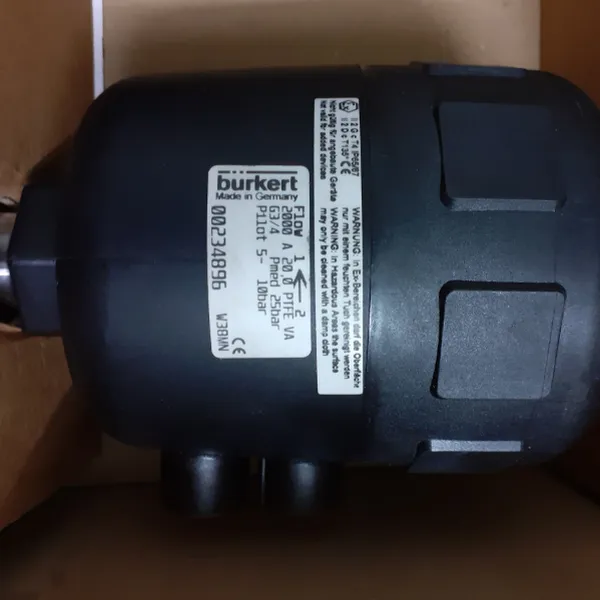

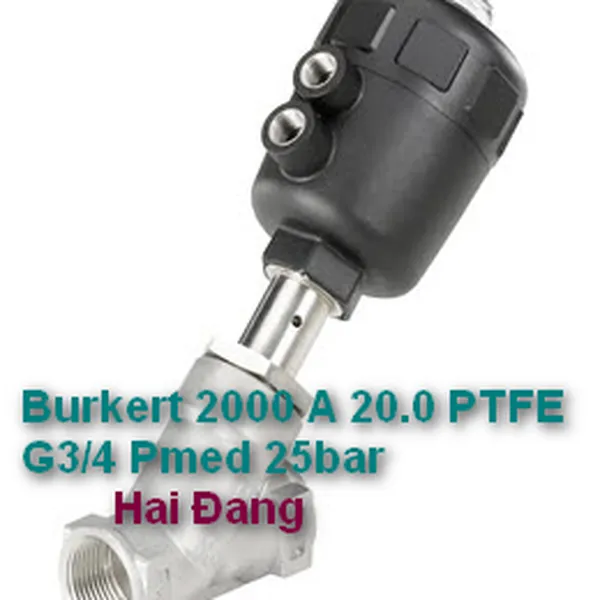

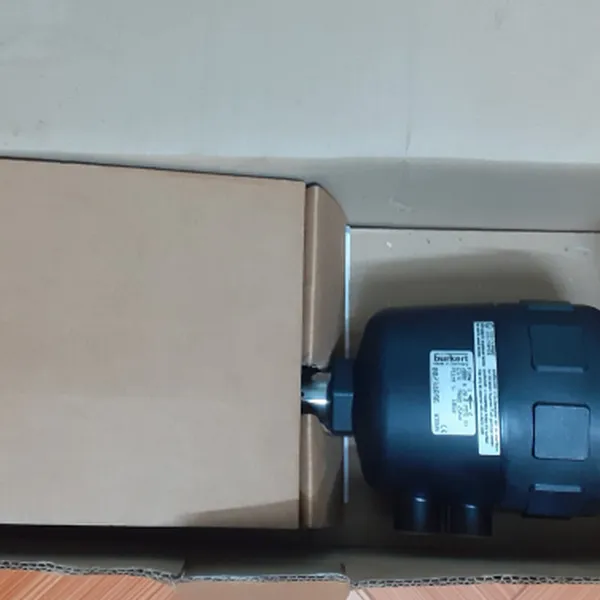

Burkert 2000-A-20,0-PT
Operating data
End connection O.D. Tube
US Tri–Clamp®
Nominal pressure 232 PSI
Fluid temperature min. 14°F (-10°C)
max. 365°F (185°C)
Maximum control pressure 145 PSI
Control fluid Neutral gases, air
Maximum viscosity .93 in2/s (600 mm2/s; 600 centistrokes)
Body material 316L Stainless Steel
Seal material PTFE
Packing gland Self–adjusting PTFE–stem seals, intermediate
relief and wiper
Ambient temperature
PA–actuator
PPS–actuator min. 14°F (-10°C)
max. 140°F (60°C)
min. 40°F (5°C)
max. 266°F (130°C)
Fluids (Examples) Water, steam, alcohols, oils, fuels, hydraulic liquids, salt solutions, lyes, organic solvents, gases
Applications Replace Ball Valves
Neutral gases and liquids up to 232 PSI
Steam up to 150 PSI / 365oF
Aggressive fl uids with stainless steel body
Food and beverage industry
Water processing
Gas delivery systems
Sterilizers
Chemical industry
Hàng có sẵn kho Hải Đăng. Liên hệ 0989.39.30.37 để được tư vấn và giao hàng
